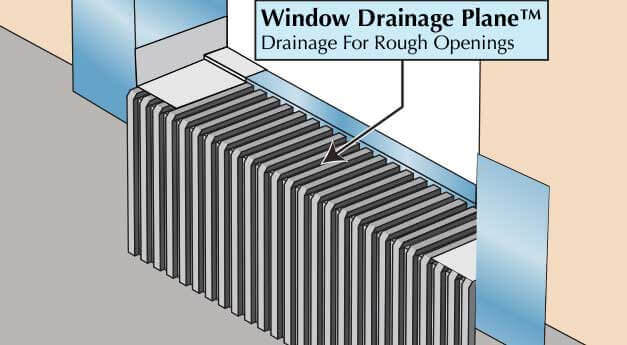

Window Drainage Plane™

Sub Sill Drainage

WDP 5000

Window Drainage Plane™



Product made with a minimum 94% post industrial recycled plastic Made with a minimum 94% Post-Industrial Recycled Plastic

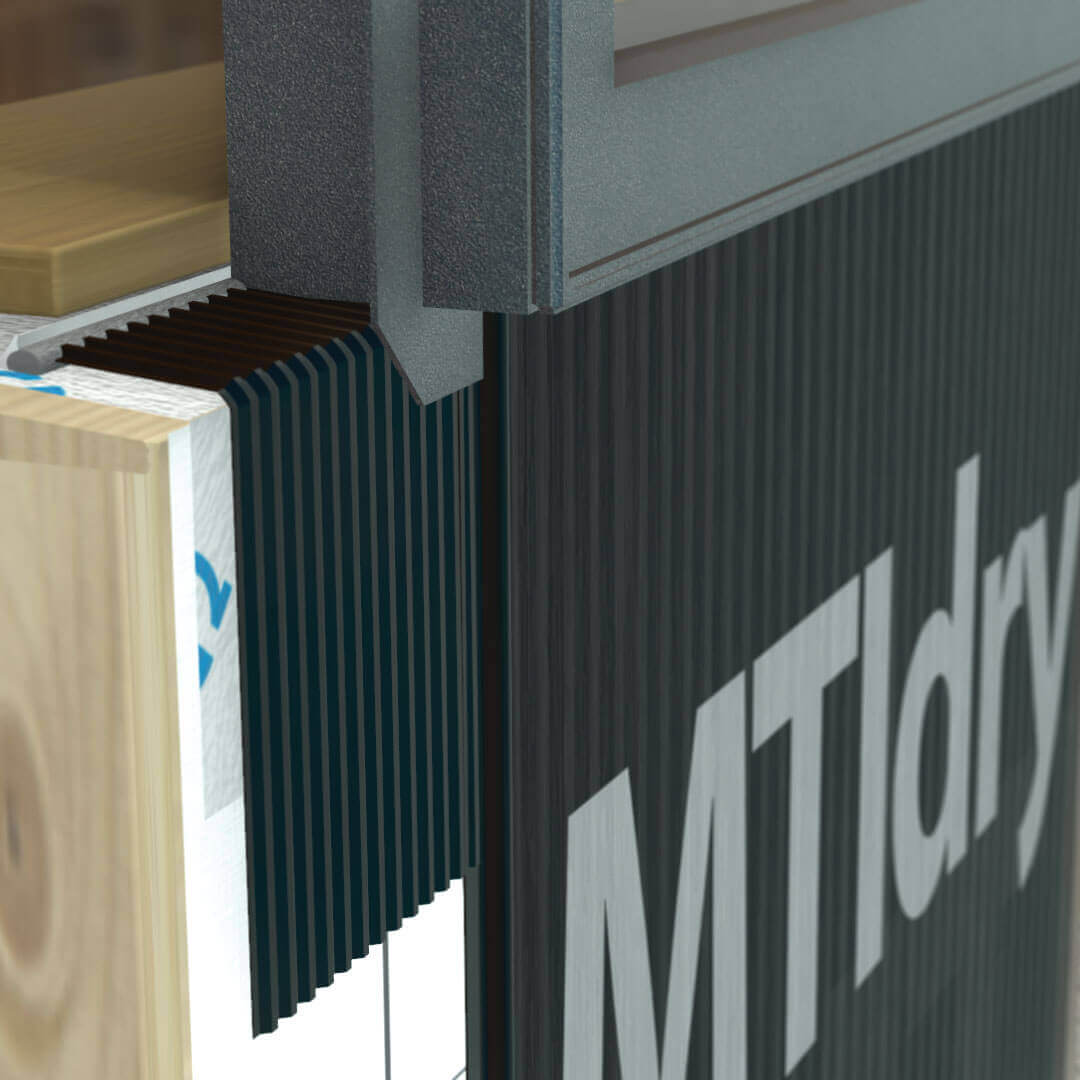

Window Drainage Plane™ Installation

  • Prepare bottom of window rough opening with proper slope-to-drain surface
  • Cut and place WDP on prepared surface at bottom of window; temporarily attach with dabs of construction adhesive
  • Flash window rough opening according to window manufacturer’s instructions
  • Install window
  • View installation animation for detailed instructions

Ordering & Shipping

Contact MTI at 1-800-879-3348 for specific cost to your destination.

Window Drainage Plane™ Specifications

A 0.024" (0.6 mm) thick high-impact polystyrene strip formed with .120" (3 mm) deep corrugations, bent into L-shape, 5" (127 mm) wide by 9" (229 mm) high, to fit on top of sub-sill region of a window rough opening prior to window installation to facilitate drainage.

Product Number WDP 5000
Piece Length (Feet) 4
Pieces per Bundle 10
Linear Feet per Bundle 40
Bundles per Box 6
Linear Feet per Box 240
Boxes per Pallet 10
Linear Feet/Units per Pallet 2400/600
Pallet Size 48"x40"x55"
