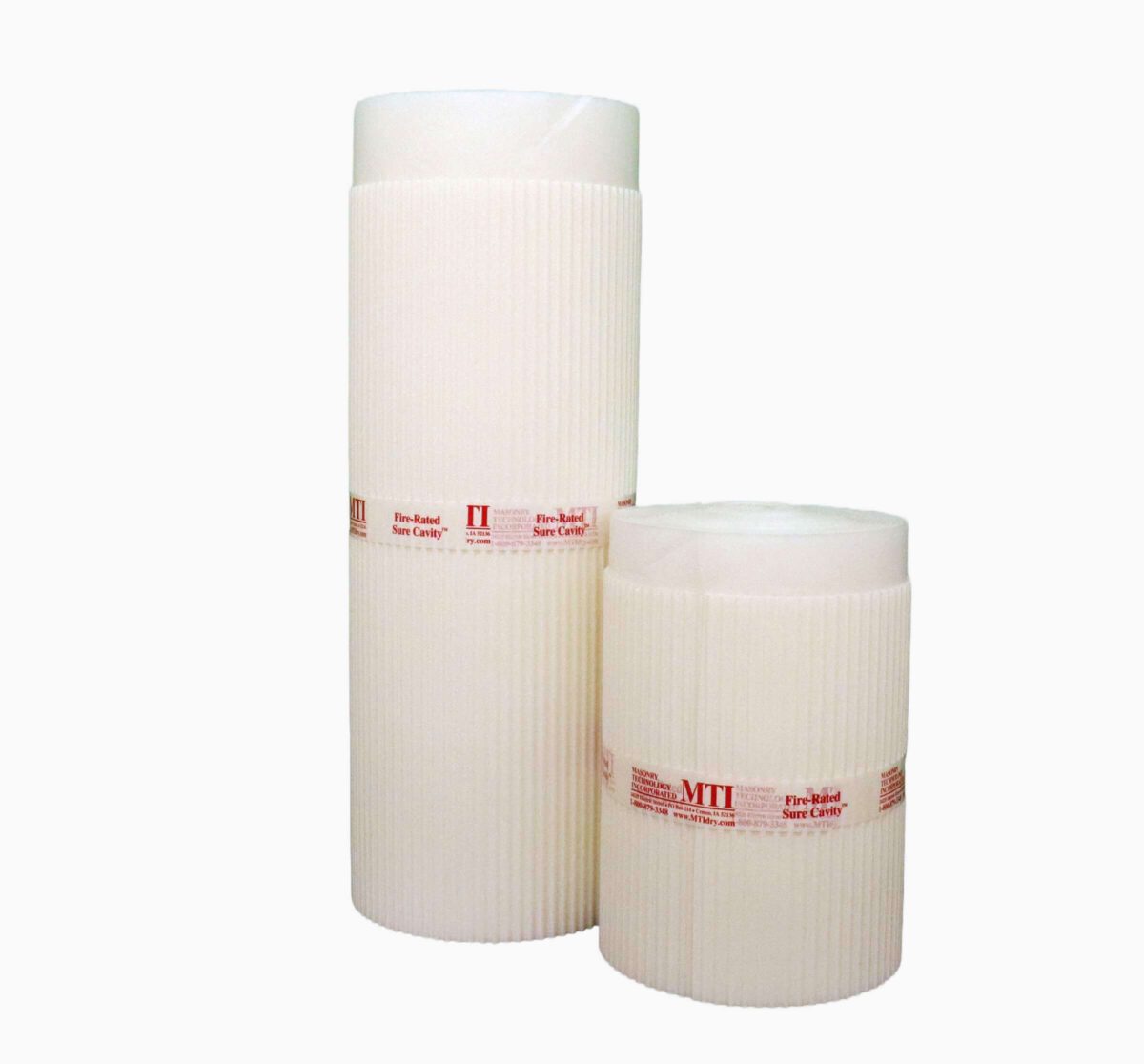

Fire-Rated Sure Cavity®

Fire-Rated Rainscreen Drainage Plane

FRSC 5016, FRSC 5032

Fire-Rated Sure Cavity®

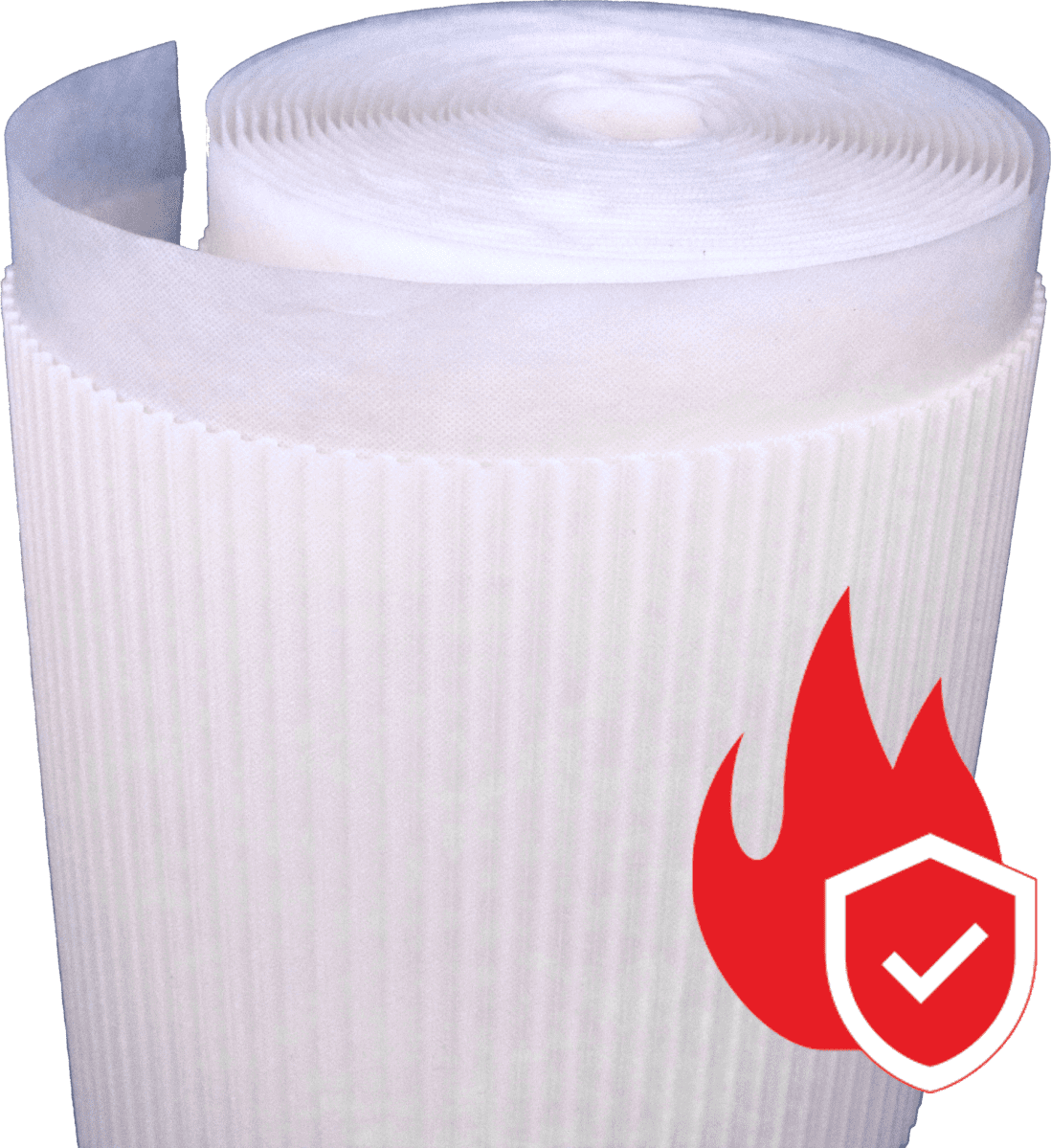

Product is fire rated Fire Rated Product

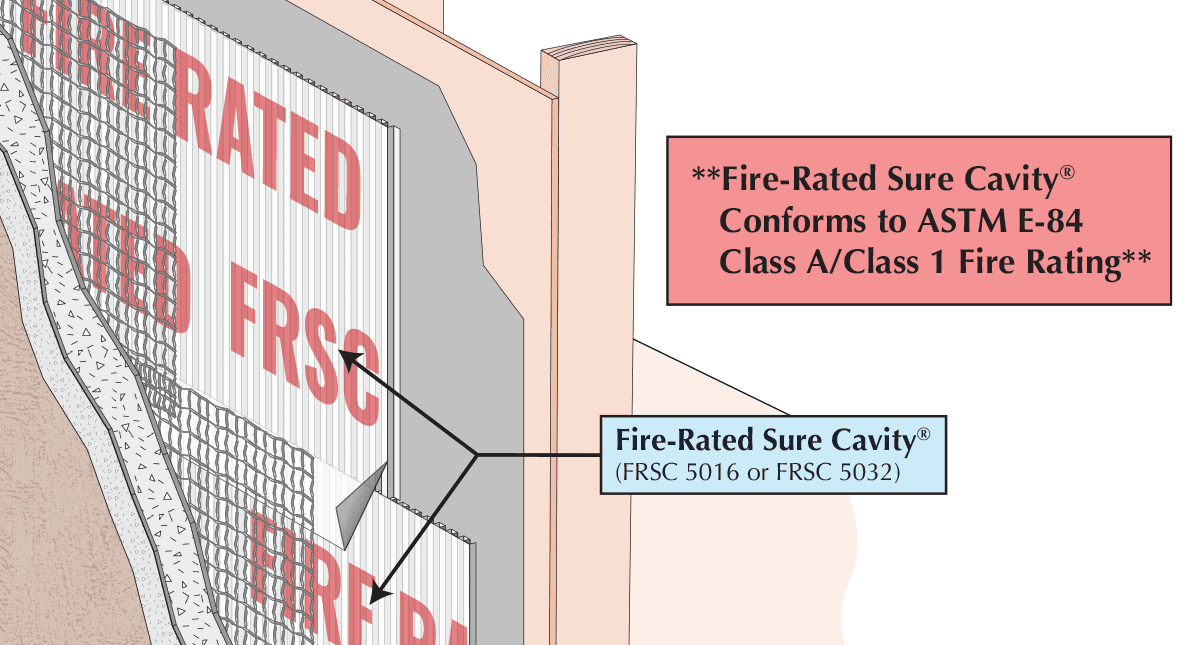

Fire-Rated Sure Cavity® Installation

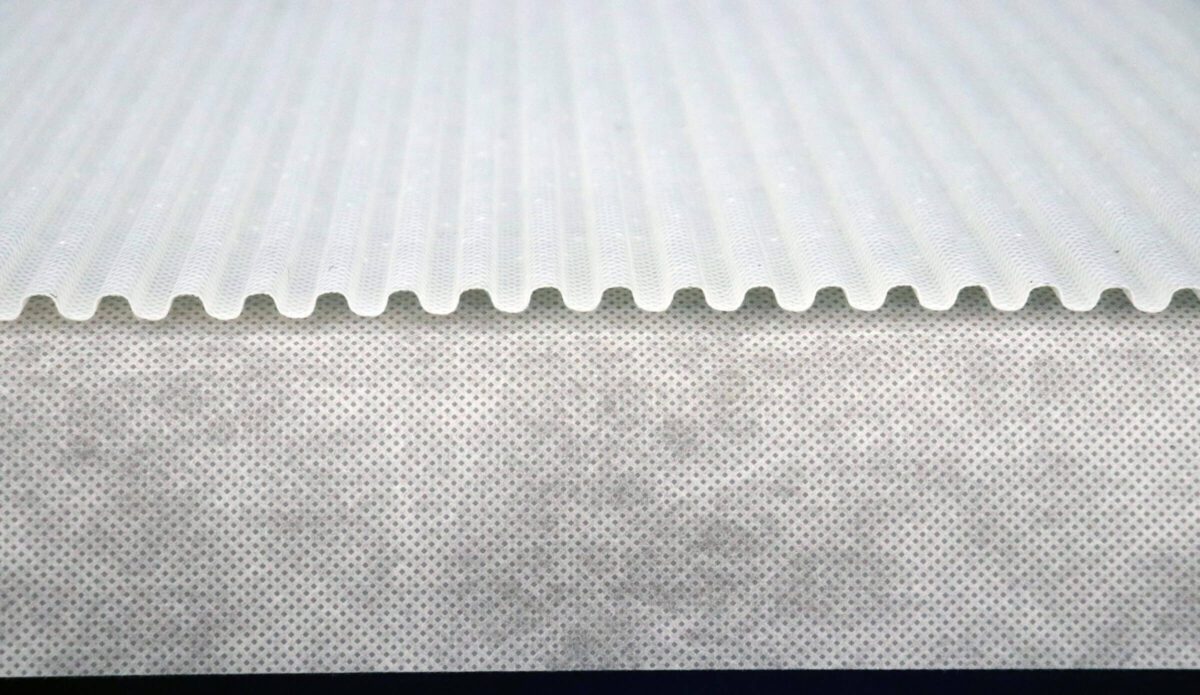

  • Install Fire-Rated Sure Cavity® rainscreen outboard of water resistive barrier. Mortar-blocking fabric faces installer.
  • Back-wrap 4″ fabric skirt to create bug screen on the lowest course. 4″ fabric skirt will lap shingle fashion in subsequent courses.
  • Corrugated material to be butted at seams. Do not overlap corrugated material. It is not necessary to align channels.
  • Wrap rainscreen around corners and extend to nearest structural member.
  • Fasten every 24″ on-center with a hammer stapler over nailable surfaces. On masonry backup walls use dime-size dabs of adhesive to hold in place. Installing lath or veneer will ultimately sandwich rainscreen in place.

Ordering & Shipping

Contact MTI at 1-800-879-3348 for specific cost to your destination.

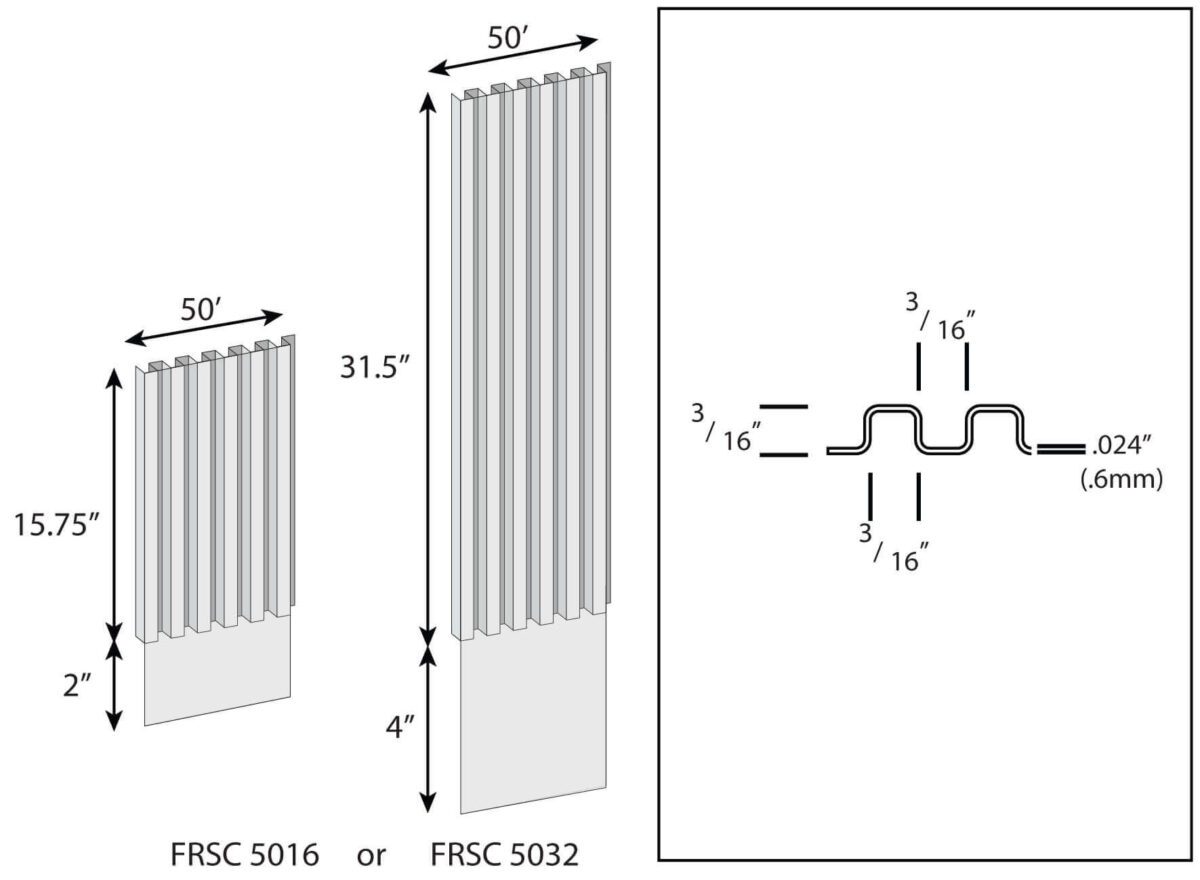

Product Number FRSC 5016 FRSC 5032
Square Feet per Roll 66 132
Roll Length (Feet) 50 50
Roll Width (Inches) 15.75 31.5
Channel Depth 3/16"/5mm 3/16"/5mm
Rolls per Box 4 N/A
Boxes per Pallet 16 N/A
Rolls per Pallet 64 32
Square Feet per Pallet 4224 4224
Pallet Size 50"x50"x88" 48"x48"x77"
