Corrugated Lath Strip™

Furring Strips for Siding, EIFS Drainage Strip

CLS 2316, CLS 3845-18, CLSW 3845-18, CLS 3845-316

Corrugated Lath Strip™



Product made with recycled plastic Made with Recycled Plastic

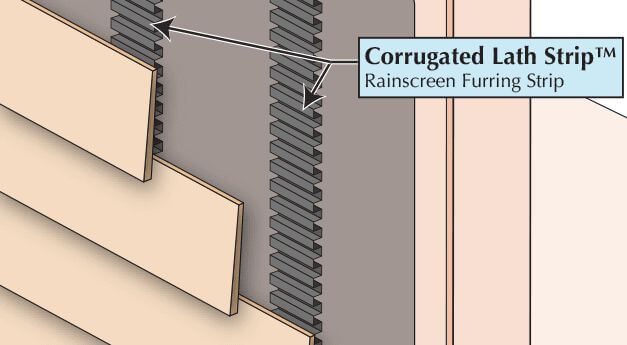

Corrugated Lath Strip™ Installation

  • Install Corrugated Lath Strip™ over the water resistive barrier
  • Align with framing or fastening pattern of siding
  • Attach with mechanical fasteners
  • Install exterior siding or exterior rigid foam insulation per manufacturer’s specification

Ordering & Shipping

Contact MTI at 1-800-879-3348 for specific cost to your destination.

Corruagated Lath Strip™ Specifications

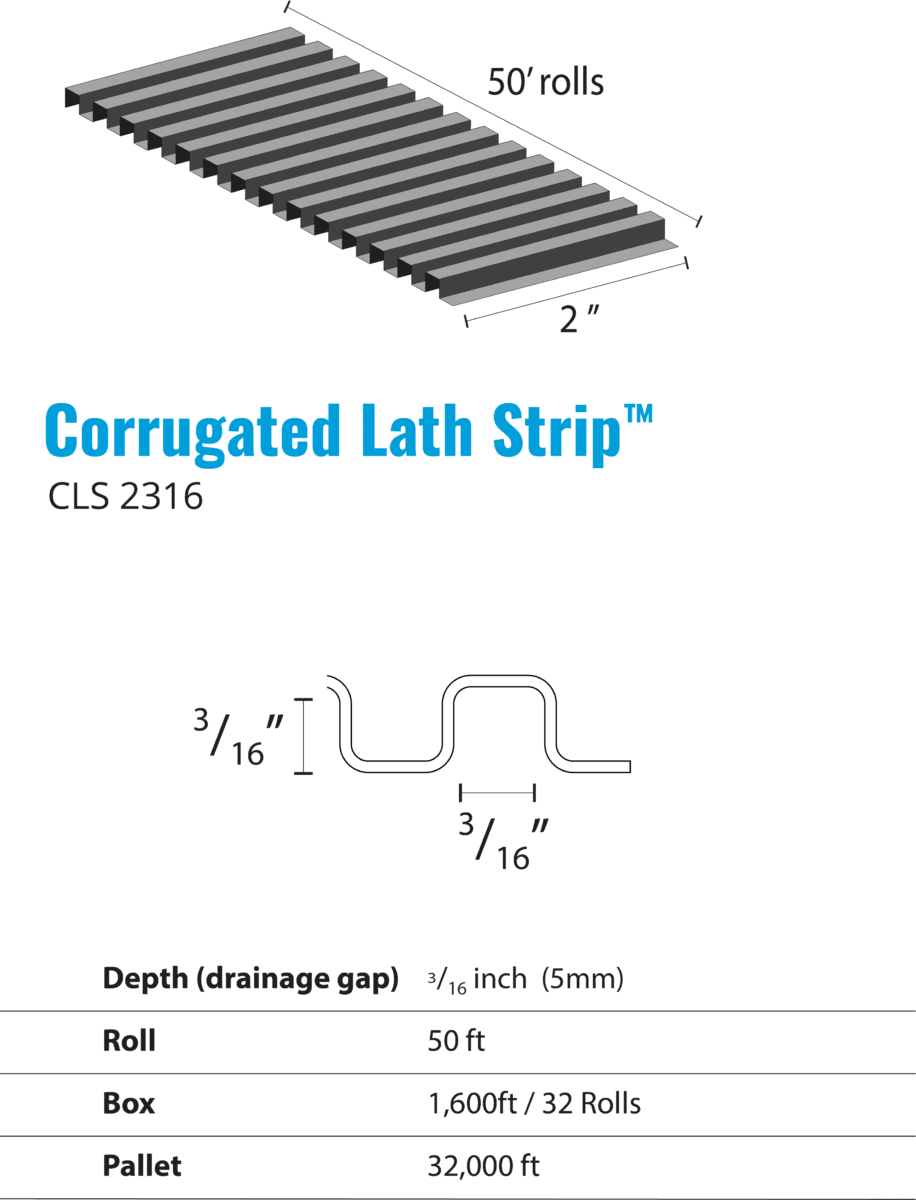

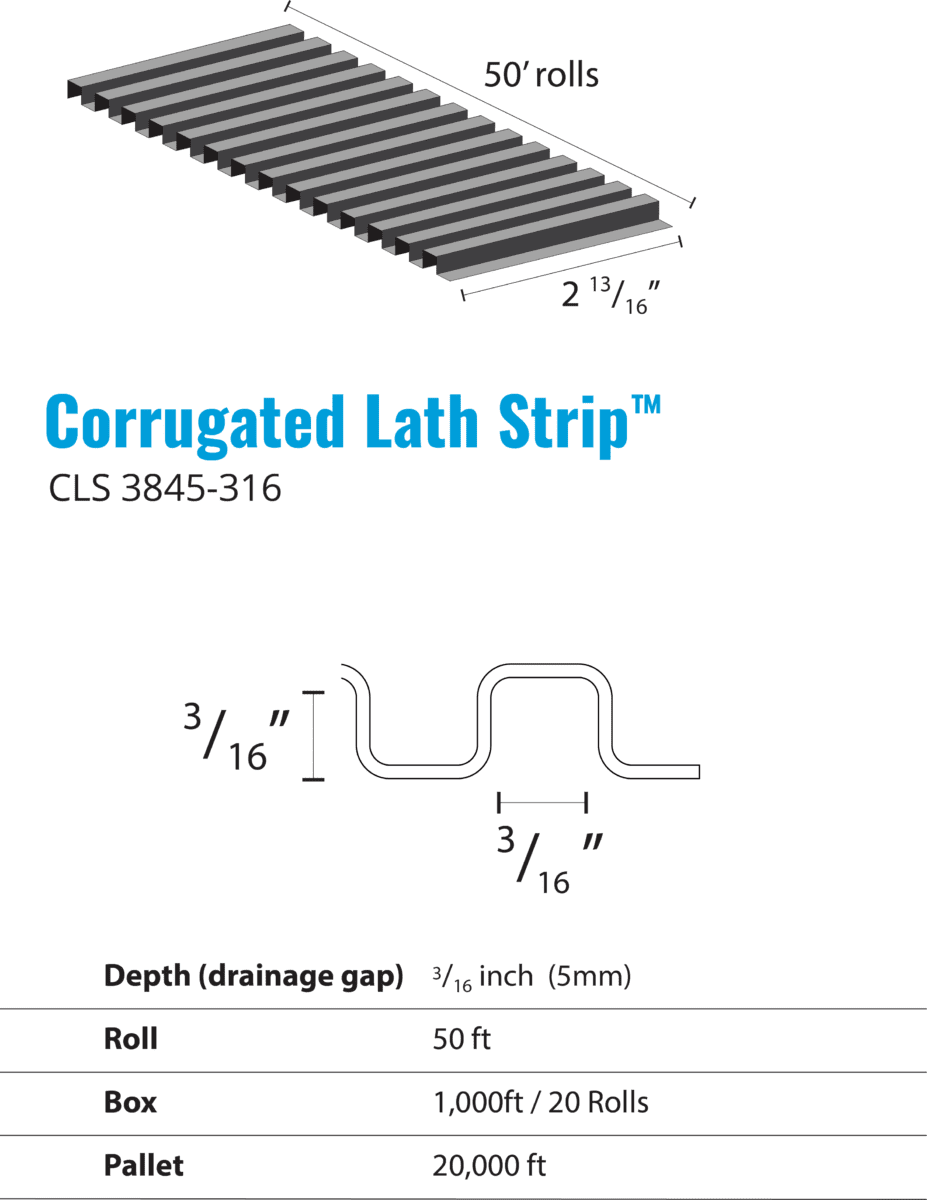

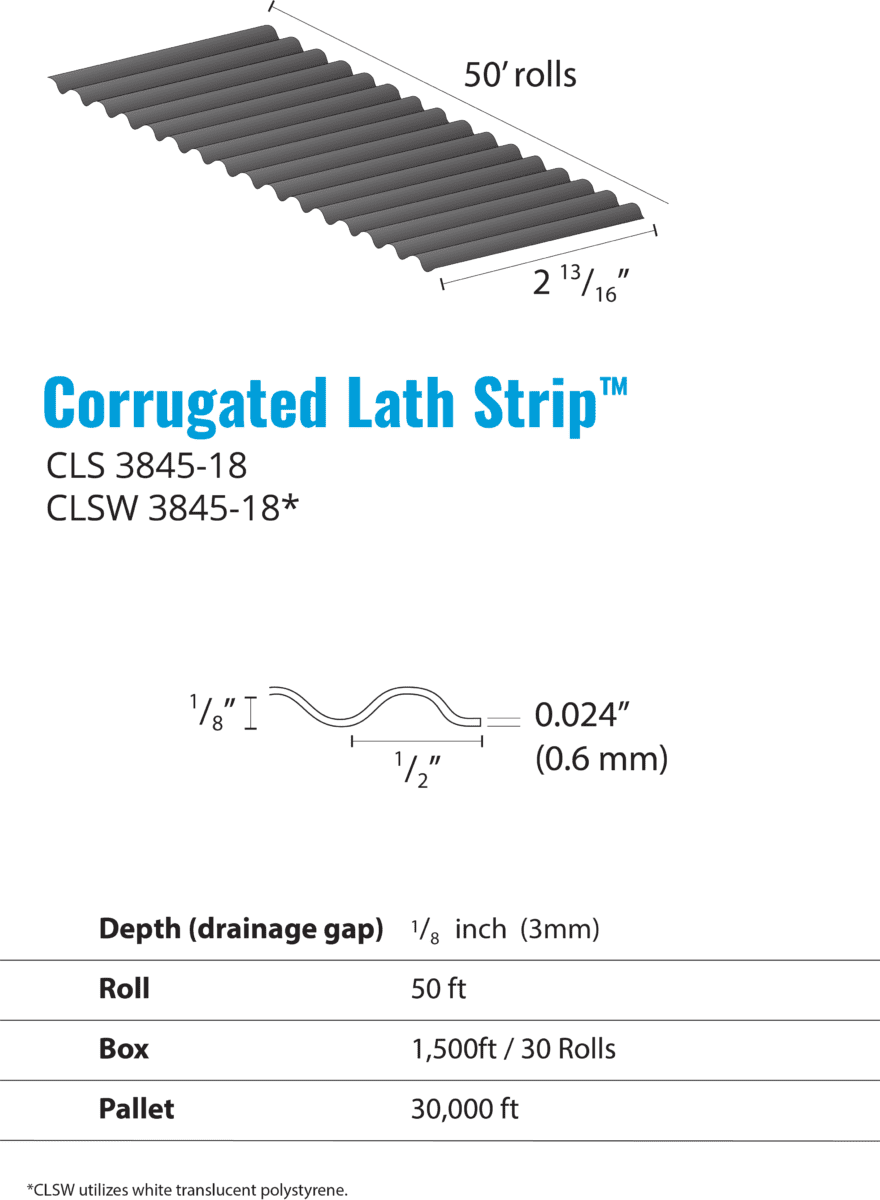

A 0.024" (0.6 mm) thick high impact polystyrene strip formed with 1/8" (3 mm) or 3/16" (5 mm) deep corrugations; 2.8" (71.12 mm) wide, 50'-0" (15 m) long continuous belt.

Product Number CLS 2316 CLS 3845-316 CLS 3845-18 and CLSW-3845-18
Roll Length 50 50 50
Rolls Per Box 32 20 30
Linear Feet Per Box 1,600 1000 1500
Boxes Per Pallet 20 20 20
Linear Feet Per Pallet 32,000 20,000 30,000
Pallet Size 49"x41"x90" 49"x41"x90" 49"x41"x90"
