10mm Sure Cavity®

Rainscreen Drainage Plane

SCMM 2516, SCMM2532

10mm Sure Cavity®



Product made with a minimum 94% post industrial recycled plastic Made with a minimum 94% Post-Industrial Recycled Plastic

10mm Sure Cavity® Installation

  • Roll out 10mm Sure Cavity® rainscreen drainage plane/drainage mat over the WRB on the backup wall with spunbond fabric facing the installer. Back wrap 4’’ fabric on bottom course to act as bug screen.
  • Fasten the 10mm Sure Cavity® rainscreen drainage plane/drainage mat with hammer stapler on wood backup walls or dabs of adhesive on masonry. To prevent wind damage only install as much as can be covered with lath/siding the same day.
  • Roll out second and succeeding courses of 10mm Sure Cavity® rainscreen drainage plane/drainage mat.  Overlap only the fabric.  Plastic butts directly to top of course beneath it.
  • Install veneer – attachment of veneer material will sandwich the 10mm Sure Cavity® rainscreen drainage mat permanently in place in thin veneer applications.

Note: When 10mm Sure Cavity® is used in interior brick veneer retrofit applications the fabric separates the corrugated plastic from the closed cell spray foam.

Ordering & Shipping

Contact MTI at 1-800-879-3348 for specific cost to your destination.

10mm Sure Cavity® Specifications

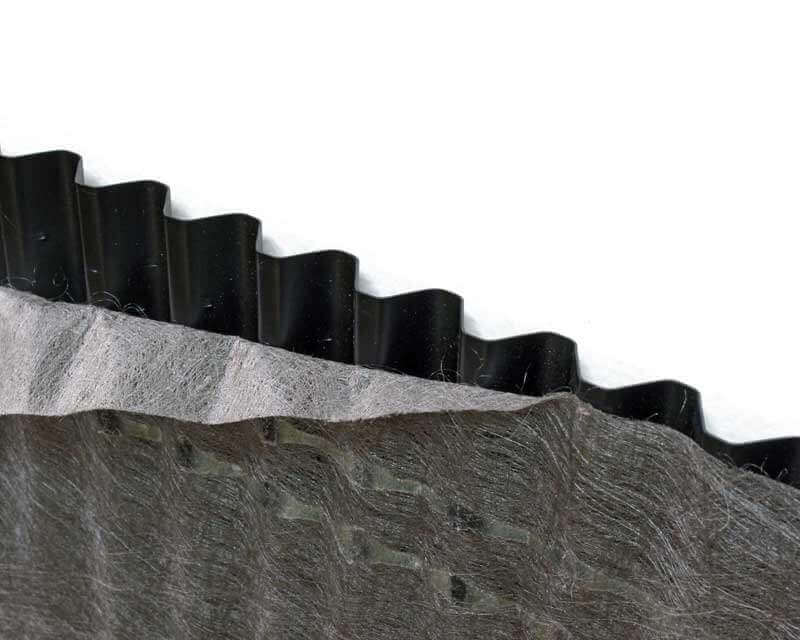

SCMM 2516 and SCMM 2532 are 0.024″ (0.6 mm) thick high impact polystyrene sheets. They are formed with corrugations and a spunbond polypropylene fabric on one side with a 4″ (102 mm) skirt on one edge.

May be referred to in specifications as channeled and perforated high impact polystyrene with an adhered fabric as an intervening drainage medium behind stucco and scratch coat systems.

Can be used in place of three-dimensional matrix of monofilament fibers with adhered fabric.

PRODUCT NUMBER SCMM 2516 SCMM 2532
Square Feet per Roll 33 66
Roll Length (Feet) 25 25
Roll Width (Inches) 15.75 31.5
Channel Depth 3/8"/10mm 3/8"/10mm
Rolls per Box 4 N/A
Boxes per Pallet 16 N/A
Rolls per Pallet 64 32
Square Feet per 2112 2112
Pallet Size 50"x50"x88" 48"x48"x77"
